User Manual

Author

François Protais

Volume Mesh Smoothing and Geometric Fitting

This package implements an optimization algorithm for improving the quality of volumetric meshes and fitting them to geometric targets. It can be used to improve an already valid mesh, untangle an invalid mesh, or deform a mesh so that its boundary follows a prescribed geometry.

The algorithm only modifies vertex coordinates. It does not insert or remove vertices, change cell connectivity, or alter the combinatorial structure of the input mesh. Consequently, cell indices, material labels, adjacency relations, and other data attached to the mesh are preserved throughout the optimization.

Smoothing and Fitting Algorithm

The algorithm optimizes vertex positions according to an element-quality energy. It currently uses a conformal energy (MIPS3D) that improves the dihedral angles of the cells. Interior vertices are moved to improve the volume mesh, while boundary vertices can additionally be attracted towards a target geometry.

The energy possesses a barrier term preventing element inversion. For an initially valid mesh, all accepted optimization steps preserve element orientation, providing a validity guarantee while the element quality is improved. The use of a penalization approach allows the optimizer to start from an invalid meshes, and recover a valid configuration by untangling inverted elements.

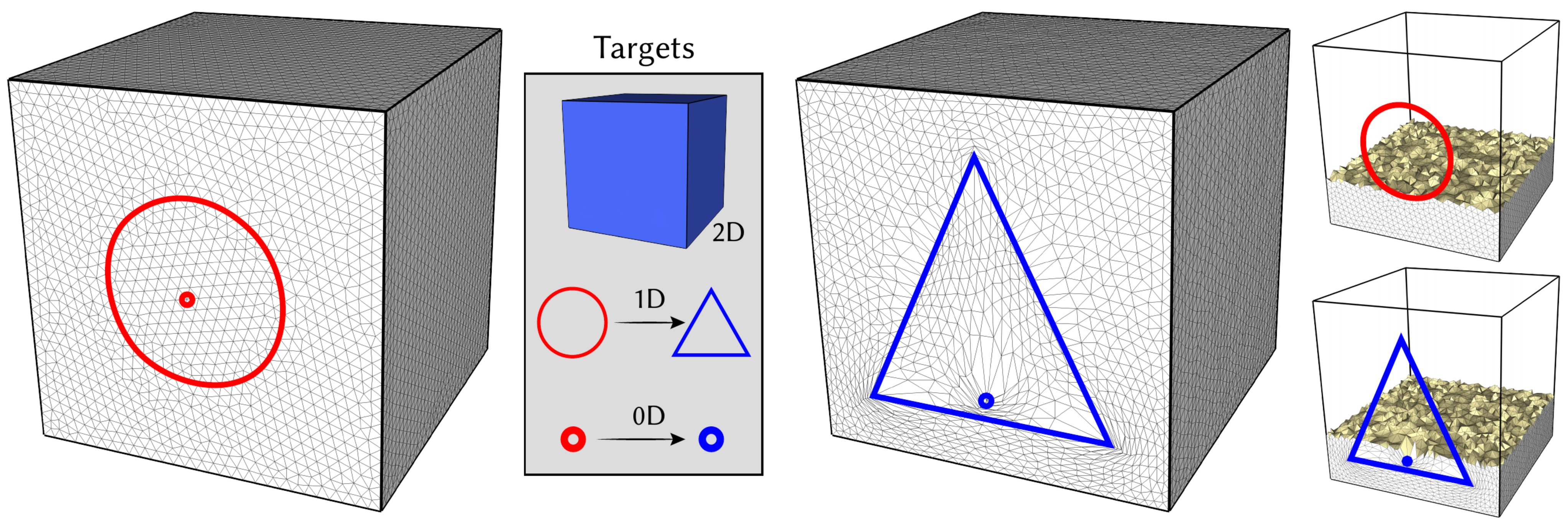

Geometric targets can be specified at several dimensions:

• surface targets constrain boundary polygons to locally estimated tangent planes;
• curve targets constrain selected mesh edges to target tangent directions;
• point targets attract individual vertices to prescribed positions.

Surface patches and curves may be assigned different identifiers, allowing different parts of the mesh to use different target geometries. Constraints are soft and weighted by default, so geometric fidelity can be balanced against element quality. Vertices, or individual coordinate dimensions, can also be locked when hard constraints are required. Combining surface, curve, and point targets allows smooth regions, sharp curves, corners, and user handles to be treated within the same optimization.

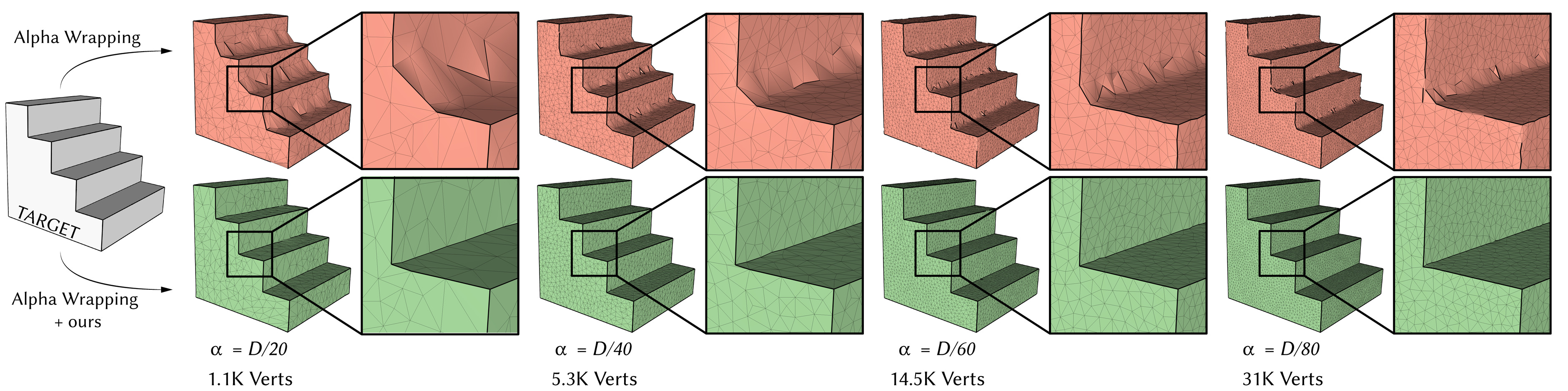

By recovering the tangent planes of the target geometry, the smoother can recover curvature discontinuities enabling automatic feature recovery/preservation.

API

The main function of the package is CGAL::boundary_aware_mesh_smoothing(), which takes a CGAL::Mesh_complex_3_in_triangulation_3 as input and updates its vertex coordinates to improve element quality and fit to geometric targets.

Examples

Direct Smoothing of a C3t3

The following example demonstrates the direct use of the smoother on a CGAL::Mesh_complex_3_in_triangulation_3. A multi-domain C3t3 is generated from a labeled image and deformed to create an initial input. The boundary_aware_mesh_smoothing is then called on the generated C3t3.

Example: Mesh_smoothing_3/c3t3_smooth.cpp

Show / Hide

// Image
#include <CGAL/ImageIO.h>
#include <CGAL/Image_3.h>
// Domain
#include <CGAL/Exact_predicates_inexact_constructions_kernel.h>
#include <CGAL/Mesh_domain_with_polyline_features_3.h>
#include <CGAL/Labeled_mesh_domain_3.h>
#include <CGAL/Mesh_3/Detect_features_in_image.h>
// C3t3
#include <CGAL/Mesh_cell_base_3.h>
#include <CGAL/Mesh_vertex_base_3.h>
#include <CGAL/Mesh_triangulation_3.h>
#include <CGAL/Mesh_complex_3_in_triangulation_3.h>
#include <CGAL/Mesh_criteria_3.h>
#include <CGAL/make_mesh_3.h>
#include <CGAL/Mesh_3/C3T3_helpers.h>

#include <CGAL/Kernel/global_functions.h>

#include <map>
#include <set>

#include <CGAL/Mesh_smoothing_3/boundary_aware_mesh_smoothing.h>

// Parallel tag
#ifdef CGAL_CONCURRENT_MESH_3
typedef CGAL::Parallel_tag Concurrency_tag;
#else
typedef CGAL::Sequential_tag Concurrency_tag;
#endif

// Kernel
typedef CGAL::Exact_predicates_inexact_constructions_kernel K;
// Domain
typedef CGAL::Labeled_mesh_domain_3<K> Image_domain;
typedef CGAL::Mesh_domain_with_polyline_features_3<Image_domain> Mesh_domain;
// Triangulations
typedef CGAL::Mesh_vertex_base_3<K, Mesh_domain> Vertex_base;
typedef CGAL::Compact_mesh_cell_base_3<K, Mesh_domain> Cell_base;
typedef std::array<std::size_t, 2> Vertex_info;
typedef std::array<std::size_t, 2> Cell_info;
typedef CGAL::Triangulation_vertex_base_with_info_3<Vertex_info, K, Vertex_base> Vertex_base_with_info;
typedef CGAL::Triangulation_cell_base_with_info_3<Cell_info, K, Cell_base> Cell_base_with_info;
typedef CGAL::Mesh_triangulation_3<Mesh_domain, CGAL::Default, Concurrency_tag, Vertex_base_with_info, Cell_base_with_info>::type Tr;
// Criteria
typedef CGAL::Mesh_criteria_3<Tr> Mesh_criteria;
// C3t3
typedef CGAL::Mesh_complex_3_in_triangulation_3<Tr> C3t3;


// To avoid verbose function and named parameters call
namespace params = CGAL::parameters;


// image of type 'unsigned char' initialised with '0'
CGAL::Image_3 create_cgal_image(const std::size_t& xdim, const std::size_t& ydim, const std::size_t& zdim,
                                double vx = 1.0, double vy = 1.0, double vz = 1.0)
{
    CGAL::_image* im = _createImage(xdim, ydim, zdim, 1,
                                    vx, vy, vz, 1,
                                    CGAL::WK_FIXED, CGAL::SGN_UNSIGNED);
    std::fill_n(static_cast<unsigned char*>(im->data), xdim*ydim*zdim, 0);
    return CGAL::Image_3(im);
}

void add_rectangle_in_image(const K::Point_3& rectangle_min, // [0..1]^3
                            const K::Point_3& rectangle_max, // [0..1]^3
                            const unsigned char& label,
                            CGAL::Image_3 &image)
{
    using CGAL::IMAGEIO::static_evaluate;
    CGAL::_image* im = image.image();
    const std::size_t min_x = rectangle_min.x() * im->xdim;
    const std::size_t min_y = rectangle_min.y() * im->ydim;
    const std::size_t min_z = rectangle_min.z() * im->zdim;
    const std::size_t max_x = rectangle_max.x() * im->xdim;
    const std::size_t max_y = rectangle_max.y() * im->ydim;
    const std::size_t max_z = rectangle_max.z() * im->zdim;
    for (std::size_t k = min_z; k < max_z; k++)
        for (std::size_t j = min_y; j < max_y; j++)
            for (std::size_t i = min_x; i < max_x; i++)
                static_evaluate<unsigned char>(im, i, j, k) = label;
}

void deform_c3t3_smooth_fold(C3t3& c3t3, const K::FT& angle, const K::FT& nb_planes)
{
    typedef C3t3::Point WPoint_3;
    K::Point_3 center = CGAL::midpoint(K::Point_3((c3t3.bbox().min)(0), (c3t3.bbox().min)(1), (c3t3.bbox().min)(2)),
                                       K::Point_3((c3t3.bbox().max)(0), (c3t3.bbox().max)(1), (c3t3.bbox().max)(2)));
    K::Plane_3 start_plane(center, K::Vector_3(1,0,0));
    Tr& triangulation = c3t3.triangulation();
    std::list<Tr::Vertex*> vertices;
    for (Tr::Vertex& vertex : triangulation.tds().vertices())
    {
        vertices.emplace_back(&vertex);
    }
    const K::FT angle_smooth_length = ((c3t3.bbox().max)(0) - (c3t3.bbox().min)(0)) * 0.1875; // * 0.25;
    const K::FT angle_smooth_length_increment = angle_smooth_length / nb_planes;
    const K::FT angle_increment = angle/nb_planes;
    const K::FT ca_i = cos(angle_increment);
    const K::FT sa_i = sin(angle_increment);
    K::Point_3 plane_center = center;
    plane_center -= K::Vector_3(angle_smooth_length * 0.5, 0, 0);
    for (std::size_t p = 0; p < nb_planes; p++)
    {
        const K::Vector_3 plane_normal(cos(p*angle_increment), sin(p*angle_increment), 0);
        const K::Plane_3 plane(plane_center, plane_normal);
        const K::FT plane_x = plane_center[0];
        const K::FT plane_y = plane_center[1];
        const K::FT plane_z = plane_center[2];
        for (std::list<Tr::Vertex*>::iterator it = vertices.begin(); it != vertices.end();)
        {
            Tr::Vertex& vertex = **it;
            const WPoint_3& point = vertex.point();
            if (plane.has_on_positive_side(point.point()))
            {
                const K::FT px = point.point()[0] - plane_x;
                const K::FT py = point.point()[1] - plane_y;
                const K::FT pz = point.point()[2] - plane_z;
                const K::Point_3 rotated_point(px*ca_i-py*sa_i + plane_x, px*sa_i+py*ca_i + plane_y, pz + plane_z);
                vertex.set_point(WPoint_3(rotated_point, point.weight()));
                it++;
            }
            else
            {
                it = vertices.erase(it);
            }
        }
        plane_center += angle_smooth_length_increment * K::Vector_3(cos((p+1) * angle_increment), sin((p+1) * angle_increment), 0);
    }
}


int main(int argc, char* argv[])
{
    CGAL::Image_3 image = create_cgal_image(64, 64, 64);
    add_rectangle_in_image(K::Point_3(0.2, 0.45, 0.2), K::Point_3(0.5, 0.55, 0.5), 1, image);
    add_rectangle_in_image(K::Point_3(0.5, 0.45, 0.2), K::Point_3(0.8, 0.55, 0.5), 2, image);
    add_rectangle_in_image(K::Point_3(0.2, 0.45, 0.5), K::Point_3(0.5, 0.55, 0.8), 3, image);
    add_rectangle_in_image(K::Point_3(0.5, 0.45, 0.5), K::Point_3(0.8, 0.55, 0.8), 4, image);
    _writeImage(image.image(), "input_image.inr");

    // Make c3t3
    Mesh_domain domain = Mesh_domain::create_labeled_image_mesh_domain(image,
        params::features_detector = CGAL::Mesh_3::Detect_features_in_image());
    CGAL::Bbox_3 bbox = domain.bbox();
    double diag = CGAL::sqrt(CGAL::square(bbox.xmax() - bbox.xmin()) +
                             CGAL::square(bbox.ymax() - bbox.ymin()) +
                             CGAL::square(bbox.zmax() - bbox.zmin()));
    double sizing_default = diag * 0.01;
    Mesh_criteria criteria(params::edge_size = sizing_default,
        params::facet_angle = 30,
        params::facet_size = sizing_default,
        params::facet_distance = sizing_default / 10,
        params::facet_topology = CGAL::FACET_VERTICES_ON_SAME_SURFACE_PATCH,
        params::cell_radius_edge_ratio = 1.5,
        params::cell_size = 0
    );
    C3t3 c3t3 = CGAL::make_mesh_3<C3t3>(domain, criteria,
                                        params::no_exude(),
                                        params::no_perturb());
    // Output
    CGAL::dump_c3t3(c3t3, "c3t3_initial");

    // Make deformed c3t3
    C3t3 c3t3_deformed(static_cast<const C3t3>(c3t3));
    deform_c3t3_smooth_fold(c3t3_deformed, 3.141592635 * 0.5, 100);

    CGAL::dump_c3t3(c3t3_deformed, "c3t3_deformed");

    CGAL::boundary_aware_mesh_smoothing(c3t3_deformed, params::verbose(true).number_of_iterations(100));

    CGAL::dump_c3t3(c3t3_deformed, "c3t3_smoothed");

    return 0;
}
