Volume Mesh Smoothing and Geometric Fitting

This package implements an optimization algorithm for improving the quality of volumetric meshes and fitting them to geometric targets. It can be used to improve an already valid mesh, untangle an invalid mesh, or deform a mesh so that its boundary follows a prescribed geometry.

The algorithm only modifies vertex coordinates. It does not insert or remove vertices, change cell connectivity, or alter the combinatorial structure of the input mesh. Consequently, cell indices, material labels, adjacency relations, and other data attached to the mesh are preserved throughout the optimization.

Smoothing and Fitting Algorithm

The algorithm optimizes vertex positions according to an element-quality energy. It currently uses a conformal energy (MIPS3D) that improves the dihedral angles of the cells. Interior vertices are moved to improve the volume mesh, while boundary vertices can additionally be attracted towards a target geometry.

The energy incorporates a barrier term preventing element inversion. For an initially valid mesh, all accepted optimization steps preserve element orientation, providing a validity guarantee while the element quality is improved. The use of a penalization approach allows the optimizer to start from an invalid meshes, and recover a valid configuration by untangling inverted elements.

Geometric targets can be specified at several dimensions:

• surface targets constrain boundary polygons to locally estimated tangent planes;
• curve targets constrain selected mesh edges to target tangent directions;
• point targets attract individual vertices to prescribed positions.

Surface patches and curves may be assigned different identifiers, allowing different parts of the mesh to use different target geometries. Constraints are soft and weighted by default, so geometric fidelity can be balanced against element quality. Vertices, or individual coordinate dimensions, can also be locked when hard constraints are required. Combining surface, curve, and point targets allows smooth regions, sharp curves, corners, and user handles to be treated within the same optimization.

By recovering the tangent planes of the target geometry, the smoother can recover curvature discontinuities enabling automatic feature recovery/preservation.

API

The main function of the package is CGAL::boundary_aware_mesh_smoothing(), which takes a CGAL::Mesh_complex_3_in_triangulation_3 as input and updates its vertex coordinates to improve element quality and fit to geometric targets.

Examples

Direct smoothing of a C3t3

The following example demonstrates the direct use of the smoother on a CGAL::Mesh_complex_3_in_triangulation_3. A C3t3 is read from a medit file with its surface patches, and boundary_aware_mesh_smoothing is then called to improve the mesh quality while preserving the input surface. Note that CGAL reader does not currently read the feature edges from medit files, so the current example will only preserve input patches.

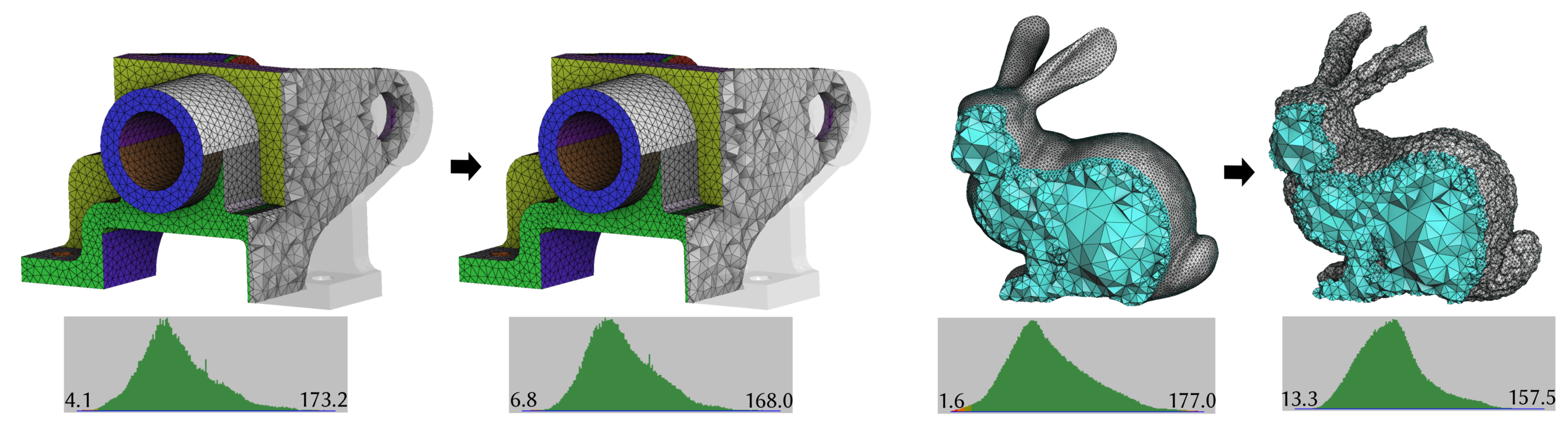

Figure 69.1 Running the smoother on mambo_m3.mesh will slightly improve dihedral angles, as the initial mesh is already of good quality for its current geometric target. Notice that the elements were able to slide on their respective patches, while still preserving sharpness and key features.

bunny.mesh file only contains volume elements, as such, the smoother will not try to preserve any surfaces. The result will be a bumpy surface, but with significantly higher quality volume elements.

Example: Mesh_smoothing_3/c3t3_smooth.cpp

Show / Hide

#include <CGAL/Exact_predicates_inexact_constructions_kernel.h>

#include <CGAL/Triangulation_3.h>
#include <CGAL/Triangulation_data_structure_3.h>
#include <CGAL/Simplicial_mesh_cell_base_3.h>
#include <CGAL/Simplicial_mesh_vertex_base_3.h>
#include <CGAL/Mesh_complex_3_in_triangulation_3.h>

#include <CGAL/tetrahedral_remeshing.h>

#include <CGAL/tags.h>

#include <CGAL/IO/File_medit.h>
#include <fstream>

#include <CGAL/Mesh_smoothing_3/boundary_aware_mesh_smoothing.h>

using K = CGAL::Exact_predicates_inexact_constructions_kernel;

using Subdomain_index = int;
using Surface_patch_index = unsigned;
using Curve_index = unsigned;
using Corner_index = unsigned;

using Cb = CGAL::Simplicial_mesh_cell_base_3<K, Subdomain_index, Surface_patch_index>;
using Vb = CGAL::Simplicial_mesh_vertex_base_3<K, Subdomain_index, Surface_patch_index,
                                                  Curve_index, Corner_index>;

using Tds = CGAL::Triangulation_data_structure_3<Vb, Cb, CGAL::Sequential_tag>;
using Triangulation = CGAL::Triangulation_3<K, Tds>;

using C3t3 = CGAL::Mesh_complex_3_in_triangulation_3<Triangulation>;


int main(int argc, char* argv[])
{
    std::string filename = (argc > 1) ? std::string(argv[1])
                          : "../data/mambo_m3.mesh";

    C3t3 c3t3;

    std::ifstream is(filename, std::ios_base::in);
    if(!CGAL::IO::read_MEDIT(is,c3t3.triangulation()))
    {
      std::cerr << "Failed to read" << std::endl;
      return EXIT_FAILURE;
    }
    c3t3.rescan_after_load_of_triangulation();

    std::ofstream os("c3t3_initial.mesh");
    CGAL::IO::write_MEDIT(os, c3t3.triangulation(), CGAL::parameters::all_vertices(true));
    os.close();

    CGAL::boundary_aware_mesh_smoothing(c3t3, CGAL::parameters::verbose(true).number_of_iterations(100));

    std::ofstream os2("c3t3_smoothed.mesh");
    CGAL::IO::write_MEDIT(os2, c3t3.triangulation(), CGAL::parameters::all_vertices(true));
    os2.close();

    std::cout << "Done" << std::endl;
    return EXIT_SUCCESS;

}
